P4mm P5mm Outdoor Advertising LED Display High Brightness High Refresh Rate
Outdoor LED Advertising Display LED Video Wall
Quick Details:
- Pixel Pitch: 4mm, 5mm
- Cabinet size: 960x960mm Aluminum Cabinet
- Recommended Viewing Distance: 4m,5m
- Refresh Rate: 3840Hz
- Ingress Rate: IP65 Outdoor Standard
- LED Module size 320X160mm
- Support Engergy Saving Solution with common cathode solution with pointed LED lamps,Power supply and IC
Features:
- Multi Installation Way of Cabinet
Support fixed installation for advertisement, adding flying bar, connectiors and fast lock for rental installation,adding rubber sushion and bracket for perimeter installation LED display
- IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and stable operation in all kinds of outdoor environments.
- Seamless Splicing
Equipped with unique lock, the position of each cabinet can be precisely adjusted from Six directions
- Ultra Lightweight Cabinet with Die-casting Aluminum material
Parameters:
| Model | E-M4 | E-M5 |
| Pixel Pitch | 4mm | 5mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 62500 pixels/m2 | 40000 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 |
| Module Resolution | 80 x 80 | 64 x 64 |
| Cabinet Resolution | 240 x 240 | 192 x 192 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Weight per Cabinet | 33kgs | 33kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC /
10% - 90% | -20ºC - 50ºC /
10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC /
10% - 90% | -20ºC - 50ºC /
10% - 90% |

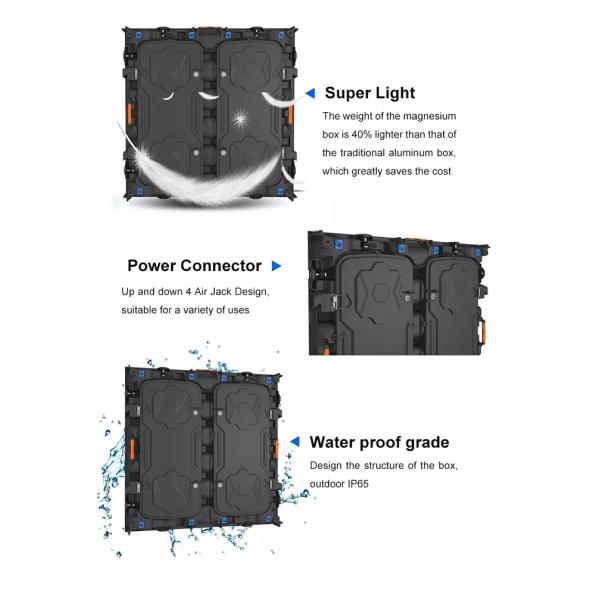

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
